Lloyd's Mirror Plots & Fits

Data can be found in jlab.feb.24-jamie.xls

Intensity fit (Adv. Grapher, c2 = 1.000, red):

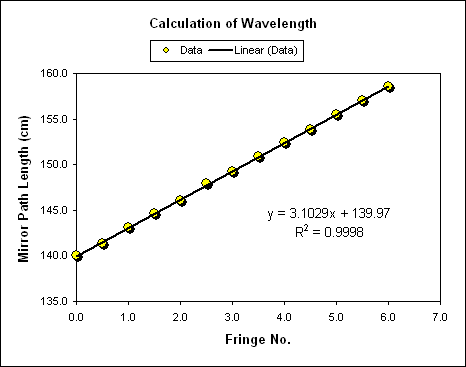

On the Calculation of Wavelength plot, the slope of the fitted line is the experimental wavelength of the m-waves. Since both maxima and minima were logged, fringes are numbered in increments of 0.5.
